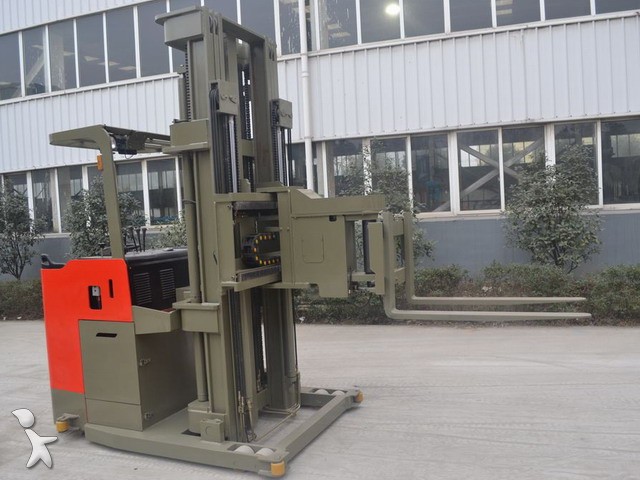

Applications: This 1000kg capacity 3-way narrow aisle electric pallet stacker or 3-way battery powered stacker truck offers exceptional versatility to customers requiring the efficient and rapid internal transfer of pallets over long distances and for the fast turnaround of goods vehicles in the receiving and dispatch bays, as well as narrow aisle storage and retrieval duties. It can be applied to refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems, especially narrow aisle storage.
Features: 1. 1510mm minimum working aisle width; 2. Color monitor for triplex mast; 3. Soft backrest; 4. Driving position display; 5. Storage capacity of warehouse increasing - up to 60%; 6. More efficient use of the existing space; 7. Cost Reducing. The narrow chassis design, small battery compartment and tiller arm steering with 180° range give this 3-way electric stacker truck excellent manoeuvrability, even in limited space.
Technical Specifications: Model: TC10 Power Type: Electric Operation Type: Stand-on Rated Load Capacity: 1000kg Load Center: 500mm Wheel (Tyre) Type: Polyurethane Solid Tyre Rear (Driving) Wheel: Ø380×165mm Auxiliary (Balance) Wheel: Ø204×76mm Front (Load) Wheel: Ø140×100mm Numbers of Wheel, F/R/Aux. (X=Driving): 4 / 1X / 2 Standard Lifting Height: 3000mm Available Lifting Height: 2.5m / 3.0m / 3.2m / 3.5m / 4.5m Height of Mast Lowered: 2570mm Height of Master Extended: 4025mm Height of Overhead Guard: 2320mm Height from Pedal to Overhead Guard: 1888mm Min. Ground Clearance: 50mm Overall Length (Fork Rotating Angle 0 Deg. / 90 Deg.): 3754/2892mm Overall Width: 1450mm Side Shift Stroke: 1160mm Wheelbase: 1604mm Front Overhang: 858mm Front/Rear Wheel Tread: 1210/726mm Fork Dimensions (L*W*T): 1070*100*35mm Fork Spread: 260~756mm Min. Turning Radius: 1880mm Aisle Width with 1000*1000 Pallet: 1480mm Travel Speed (Full-load/No-load): 7.0/8.0km/h Lifting Speed (Full-load/No-load): 180/315mm/s Rotating Speed of Forks: 12s/180 deg. Side Shift Speed: 240mm/s Max. Gradeability:
